Stainless steel woven wire mesh mainly used for the filtration and screening of gas, liquid and solid, the separation of media and so on.
- Product Name
- Product Keyword
- Product Model
- Product Summary
- Product Description
- Multi Field Search
English
 |
| Quantity: | |
|---|---|

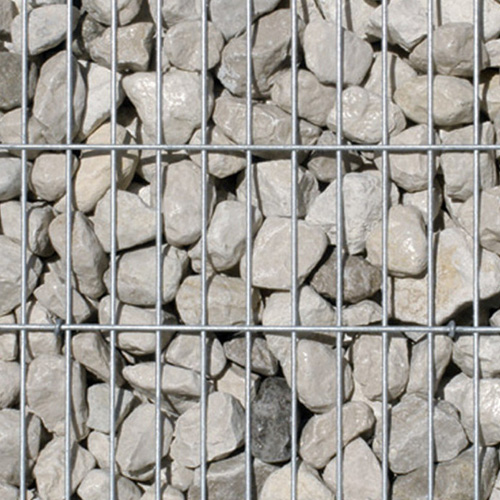

Gabion boxes are made of low carbon steel wire with high corrosion resistance, high strength and ductility, or steel wire coated with plastic pvc/pe, which are woven mechanically. The diameter of low carbon steel wire used varies according to the engineering design requirements according to en10223-3 and yb/t4190-2018 standards
Popular gabion box sizes: 2.0 m × 1.0 m × 1.0 m; 1.5 m × 1.0 m × 1.0 m; 2.0 m × 1.0 m × 0.5 m; 1.0 m × 1.0 m × 1.0 m.

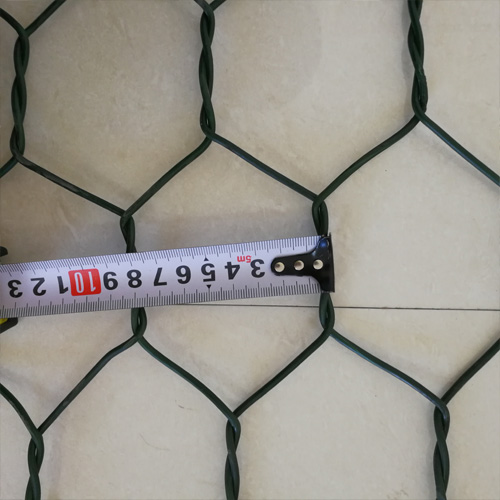

Mesh size: 60*80mm , 80 × 100 mm. 100mm*100mm
Main gabion wall materials：
（1）Galvanized steel wire: High quality low carbon steel wire, the diameter of steel wire ranges from 2.0 mm-4.0mm,
（2）zinc-5%(10%) aluminum wire diameter up to 2.0 mm-4.0mm, wire tensile strength 350~500 n/mm².
（3）steel wire with pvc or pe coated:
（4）zinc-5%(10%) aluminium-mixed rare earth alloy steel wire with pvc or pe coated:
Gabion boxes are made of low carbon steel wire with high corrosion resistance, high strength and ductility, or steel wire coated with plastic pvc/pe, which are woven mechanically. The diameter of low carbon steel wire used varies according to the engineering design requirements according to en10223-3 and yb/t4190-2018 standards
Popular gabion box sizes: 2.0 m × 1.0 m × 1.0 m; 1.5 m × 1.0 m × 1.0 m; 2.0 m × 1.0 m × 0.5 m; 1.0 m × 1.0 m × 1.0 m.
Mesh size: 60*80mm , 80 × 100 mm. 100mm*100mm
Main gabion wall materials：
（1）Galvanized steel wire: High quality low carbon steel wire, the diameter of steel wire ranges from 2.0 mm-4.0mm,
（2）zinc-5%(10%) aluminum wire diameter up to 2.0 mm-4.0mm, wire tensile strength 350~500 n/mm².
（3）steel wire with pvc or pe coated:
（4）zinc-5%(10%) aluminium-mixed rare earth alloy steel wire with pvc or pe coated:
