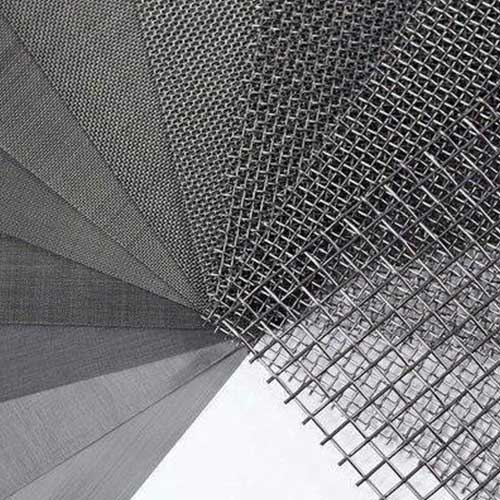

Stainless steel woven wire mesh mainly used for the filtration and screening of gas, liquid and solid, the separation of media and so on.

Home » Products » Stainless Steel Woven Wire Mesh » Stainless Steel Plain Woven Wire Mesh
  +86-13833895666
  mary@anyangwiremesh.com
  13833895666
  mary.anyang
  +8613833895666

Random Products

Products

Share to:

Stainless Steel Plain Woven Wire Mesh

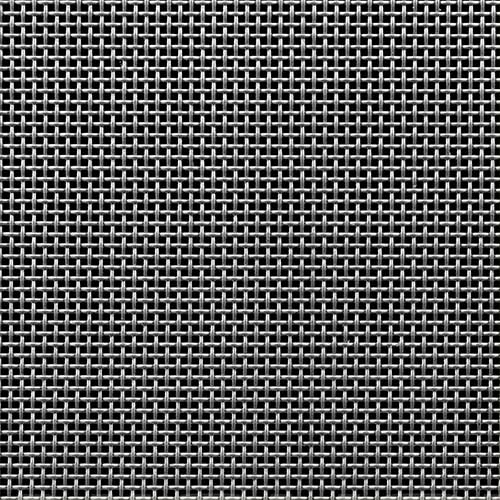

Stainless Steel Plain Woven Wire Mesh is made of a weft wire and a warp wire with same diameter woven together and is a knitting pattern in which each warp thread crosses the top and bottom of each weft thread at an angle of 90 degrees . It has excellent resistance to acid, alkali, high temperature and abrasion.

Quantity:

Stainless Steel Plain Woven Wire Mesh is made of a weft wire and a warp wire with same diameter woven together and is a knitting pattern in which each warp thread crosses the top and bottom of each weft thread at an angle of 90 degrees . It has excellent resistance to acid, alkali, high temperature and abrasion.

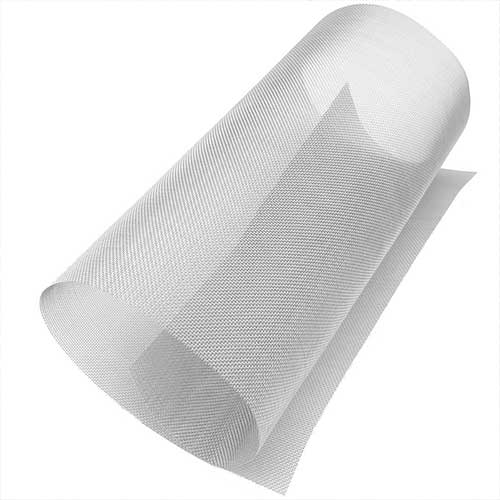

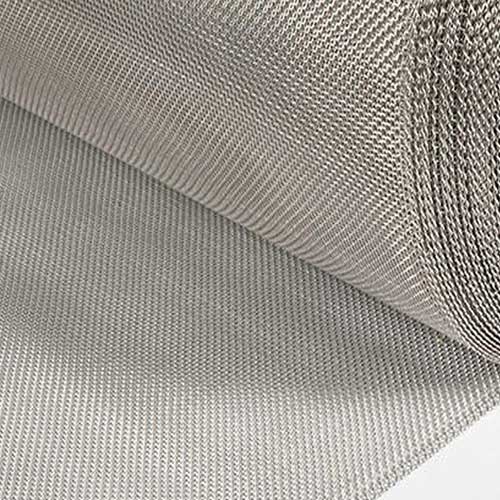

                           Stainless Steel Plain Woven Wire Mesh         Stainless Steel Plain Woven Wire Mesh

Stainless Steel Plain Woven Wire Mesh Specifications:

Materials: 302, 304, 304L, 310, 316, 316L, 321, 410, 410L, super duplex stainless steel, duplex stainless steel or customized.

  • 304 SS: The most commonly used stainless steel in wire weaving. Excellent corrosion performance, can withstand temperatures of 1100 degrees Fahrenheit.

  • 304L SS: Similar performance to 304ss, but with lower carbon content, better welding can be achieved.

  • 316 SS: Similar properties to 304ss but is stabilized by the addition of Molybdenum for increased resistance to chemical corrosion.

  • 316L SS: Similar to 304ss, but stabilized by adding molybdenum to improve its chemical resistance

  • 321 SS has both higher creep strength and stress rupture capabilities, and similarly possesses good low-temperature toughness.


Hole Patterns: square, rectangle.

Surface Treatment: pickling and passivation, polishing.



Specifications of Plain Weave Stainless Steel Wire Mesh

Mesh

Wire Diameter (mm)

Opening (mm)

Weight (kg/m2)

1

2

23.4

2

2

1.5

11.2

2.25

3

1

7.466

1.5

4

0.9

5.45

1.62

5

0.8

4.28

1.6

6

0.7

3.53

1.47

7

0.6

3.02

1.26

8

0.5

2.675

1

9

0.5

2.322

1.125

10

0.8

1.74

3.2

11

0.7

1.609

2.695

12

0.6

1.516

2.16

13

0.5

1.453

1.625

14

0.4

1.414

1.12

15

0.4

1.293

1.2

16

0.35

1.237

0.98

17

0.35

1.144

1.041

18

0.35

1.061

1.1

19

0.35

0.986

1.16

20

0.4

0.97

0.97

21

0.3

0.909

0.945

22

0.3

0.854

0.99

23

0.25

0.854

0.718

24

0.25

0.858

0.48

25

0.2

0.816

0.5

26

0.2

0.076

0.52

27

0.2

0.74

0.54

28

0.3

0.607

1.26

29

0.3

0.575

1.3

30

0.3

0.546

1.35

40

0.25

0.385

1.25

50

0.2

0.308

1

60

0.15

0.273

0.675

70

0.14

0.222

0.686

80

0.12

0.197

0.576

90

0.11

0.172

0.544

100

0.1

0.154

0.5

120

0.08

0.131

0.384

150

0.07

0.099

0.367

380

0.02

0.046

0.076

400

0.018

0.0455

0.0648



Stainless Steel Plain Woven Wire Mesh Features:

  • Excellent acid, alkali, and corrosion resistance;

  • Resist to high temperature and rust;

  • Durable and good strength and toughness;

  • Flat and beautiful surface and easy to clean.


Stainless Steel Plain Woven Wire Mesh Applications:

  • Stainless steel wire cloth can be used for filter, sieve, ,Made into filter, sieve, insect screen and serve in electroplating;

  • Designed into fruits and vegetables basket, infill panels;

  • Widely used in mining,oil, plastic, fiber, food, medicine industries etc.

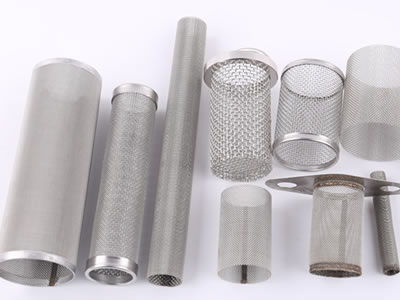

  • Stainless Steel Plain Woven Wire Mesh Filter Tube

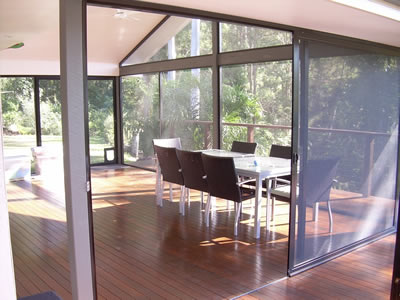

    Stainless Steel Plain Woven Wire Mesh Door Screen

Stainless Steel Plain Woven Wire Mesh Packing:

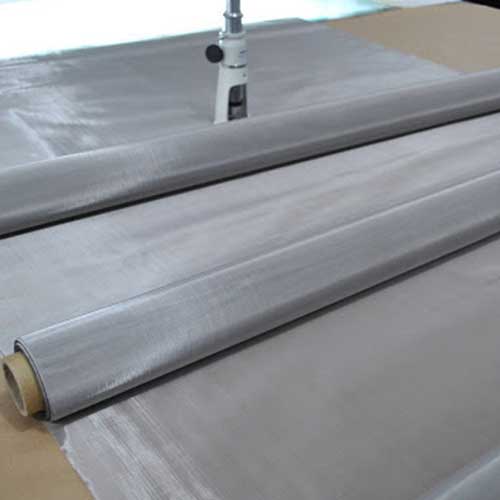

Rolls wrapped with craft paper and then put into carton or on pallet;

Sheets in wooden boxes or on pallets.
