Stainless steel woven wire mesh mainly used for the filtration and screening of gas, liquid and solid, the separation of media and so on.
- Product Name
- Product Keyword
- Product Model
- Product Summary
- Product Description
- Multi Field Search
English
 |
| Quantity: | |
|---|---|

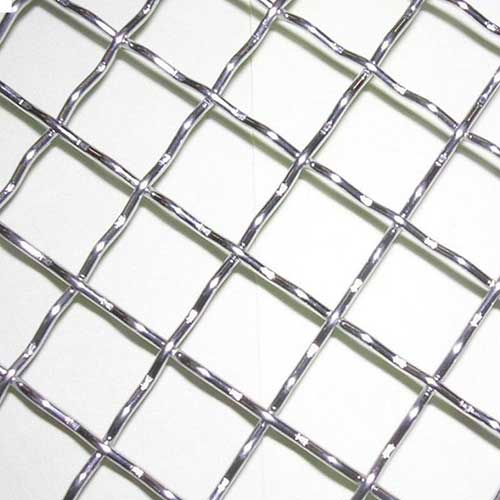

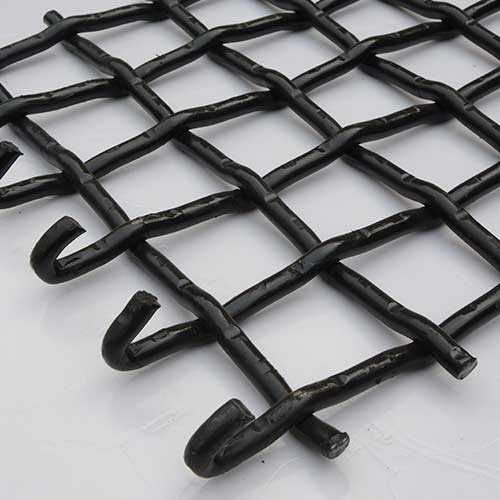

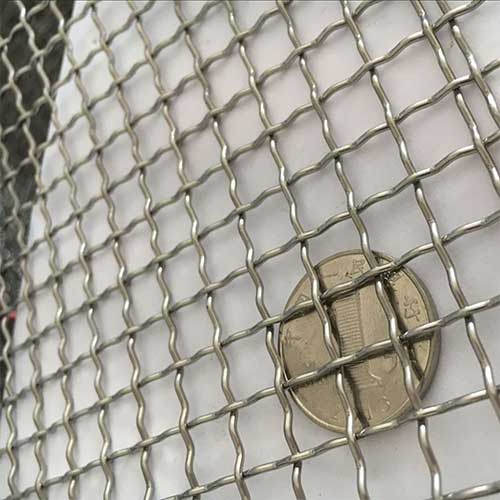

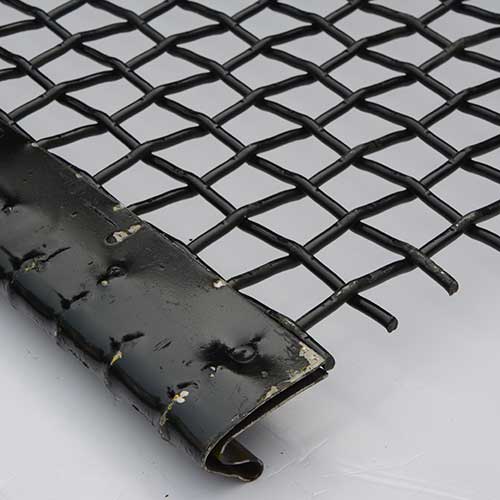

Stainless Steel Crimped Mesh is made through crimping mesh machine with pre-crimped wire in the following styles listed.Rectangular or square openings available due to the different crimping styles.
Two-way separated wave crimping;
Locked crimping;
Flat-topped crimping;
Two way crimping;
One-way separated wave crimping
Specifications of Stainless Steel Crimping Wire Mesh :
Materials: 302 304 304L 310 316 316L.
Weaving Patterns: weaving after crimping.
Orifice Width: 10-120mm if there are multiple notches.
4-40mm if it is a single cut grid, it is .
Wire Diameter: 1.0-5.5mm
Screen Width: up to 2000mm.
Processing Methods: lock weave, bi-directional plain weave, single wave weave, two-way wave weave, rectangular open weave.
Features of Stainless Steel Crimped Wire Mesh :
Stainless Steel Crimped Wire Mesh offers great dimensional strength and stability, great resistance to abrasion, uniform openings and excellent anti-corrosion.
Applications of Stainless Steel Crimped Wire Mesh :
The Stainless Steel Crimped Wire Mesh is usually used as quarry screen in mine, coal factory, construction and other industries.
The Stainless Steel Crimped Wire Mesh are for roasting of flour food and meat.
The Stainless Steel Crimped Wire Mesh used in designing is of superior grade and hence makes the wire mesh adaptable to the heat, cold, chemicals, acids and load involved in the industry.
Stainless Steel Crimped Mesh is made through crimping mesh machine with pre-crimped wire in the following styles listed.Rectangular or square openings available due to the different crimping styles.
Two-way separated wave crimping;
Locked crimping;
Flat-topped crimping;
Two way crimping;
One-way separated wave crimping
Specifications of Stainless Steel Crimping Wire Mesh :
Materials: 302 304 304L 310 316 316L.
Weaving Patterns: weaving after crimping.
Orifice Width: 10-120mm if there are multiple notches.
4-40mm if it is a single cut grid, it is .
Wire Diameter: 1.0-5.5mm
Screen Width: up to 2000mm.
Processing Methods: lock weave, bi-directional plain weave, single wave weave, two-way wave weave, rectangular open weave.
Features of Stainless Steel Crimped Wire Mesh :
Stainless Steel Crimped Wire Mesh offers great dimensional strength and stability, great resistance to abrasion, uniform openings and excellent anti-corrosion.
Applications of Stainless Steel Crimped Wire Mesh :
The Stainless Steel Crimped Wire Mesh is usually used as quarry screen in mine, coal factory, construction and other industries.
The Stainless Steel Crimped Wire Mesh are for roasting of flour food and meat.
The Stainless Steel Crimped Wire Mesh used in designing is of superior grade and hence makes the wire mesh adaptable to the heat, cold, chemicals, acids and load involved in the industry.
