Galvanised Steel Perforated Metal Mesh

perforated galvanized metal also known as Perforated galvanized steel, is an ideal material for tough environments because it holds up against corrosion and it's economical. Perforated galvanized sheet is manufactured from carbon or low carbon steel and then treated with hot galvanizing technology. Galvanizing can protect the steel for several years if applied under the right conditions. When you choose perforated galvanized sheet as the ornamental material for your design, we recommend that the diameter of the hole should not be less than 13 mm. This might be necessary because the perforations must be large enough so as to avoid zinc webbing across the perforations during the galvanizing process.
Availability:
Quantity:

Galvanised Steel Perforated Metal Mesh also known as Perforated galvanized steel, is an ideal material for tough environments because it holds up against corrosion and it's economical. Galvanised steel perforated metal mesh is manufactured from carbon or low carbon steel and then treated with hot galvanizing technology. Galvanizing can protect the steel for several years if applied under the right conditions. When you choose perforated galvanized sheet as the ornamental material for your design, we recommend that the diameter of the hole should not be less than 13 mm. This might be necessary because the perforations must be large enough so as to avoid zinc webbing across the perforations during the galvanizing process.


Specification of Galvanised Steel Perforated Metal Mesh  :

        Material: carbon steel, low carbon steel.

        Material Model: AISI 1018/1144/12L14/8620, ASTM A36/A653/A366/A513.

        Thickness: 0.3–8 mm.

        Width: 0.9–1.22 m.

        Length: 1.2–3 m.

        Hole Diameter: 13–100 mm.

        Hole Arrangement Mode: straight, staggered.

        Staggered Center: 0.125–1.875 mm.

        Mesh Opening Area: 5% – 79%.

        Surface Treatment: hot dipped galvanizing, powder coating is also available.

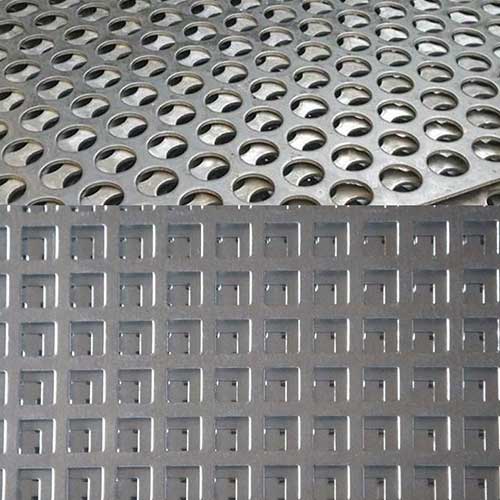

        BD2-min  Galvanized-Perforated-Metal-Anti-Skid-Plate-Anti-Skid-Plate



Feature of Galvanised Steel Perforated Metal Mesh

  • Strong

  • Corrosion resistant

  • Economical

  • Adds an element of depth, texture and scattered light



Application of Galvanised Steel Perforated Metal Mesh

  • Galvanized steel perforated sheet metal is highlyuseful in a wide range of applications from industry to decoration.From a functional standpoint, perforated galvanized steel is an excellent option for such features as stairs, flooring and outdoor furniture.

  • It is also very useful when incorporated into machinery, as the steel provides strength and support while the perforations allow for maximum ventilation.

  •  It is valued for its decorative value. You'll find countless ways to incorporate perforated galvanized steel into modern architecture and design; as it adds an element of depth, texture and scattered light. Further, because it's galvanized, your decorative feature will hold up in less-than-ideal outdoor conditions.


The beauty of perforated metal lies in the fact that its indoor and outdoor applications are seemingly endless.By itself, steel is an excellent building material because of its capacity for strength. Yet if it is not galvanized, steel is prone to rusting, which limits its functionality in outdoor applications. To address that problem, steel is galvanized by adding a solid zinc coating that effectively blocks corrosive elements such as moisture. In short, perforated galvanized steel sheet metal takes advantage of the strength of raw steel while increasing your options for where and how you use it.

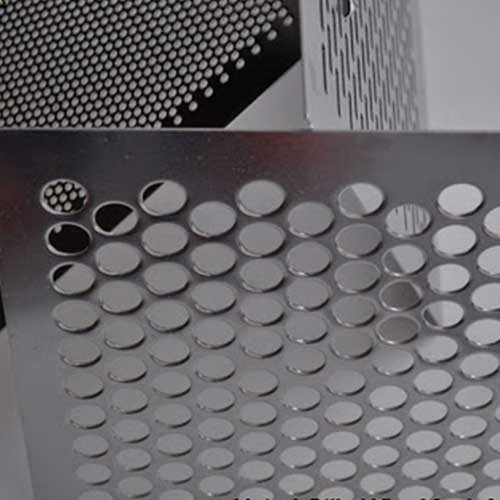

Clinica-Universitaria-Manresa-Imar-Expanded-&-perforated--Galvanised-Facade-Architect-041  unnamed-(1)
